Quota and Limit Settings in Exchange Server: Basic Information and Uses
Systems using Exchange Server use various quotas and limit settings to manage email traffic in an organized and controlled manner. These settings ensure users' mailboxes remain organized and maintain system performance and security. These limits can include various limits, such as the size of emails that can be sent or received, the maximum number of recipients per email, and the maximum capacity a mailbox can reach. In this article, we categorize and explain the most commonly used quota and limit settings in an Exchange Server environment.
1. Mailbox Quotas
IssueWarningQuota
When the mailbox exceeds this limit, a warning message is sent to the user. Sending or receiving emails is not affected.
ProhibitSendQuota
Once the mailbox exceeds this limit, the user cannot send emails. However, they can still receive emails.
ProhibitSendReceiveQuota
Once this limit is exceeded, the user can neither send nor receive email. It represents a critical threshold.
To check current quota status;
Get-MailboxDatabase | FT name, ProhibitSendQuota,ProhibitSendReceiveQuota,IssueWarningQuota
2. Message Size Limits
MaxReceiveSize
Specifies the maximum email size that a user can receive. This can be set at the mailbox level.
MaxReceiveSize
Specifies the maximum email size that the user can send.
MaxReceiveSize
Specifies the maximum email size that can pass through the Send/Receive Connector.
To check current quota status;
Get-Mailbox | Ft name ,MaxSendSize,MaxReceiveSize
3. Recipient Limits
RecipientLimits
Specifies the maximum number of recipients that can be sent per user.
To check current quota status;
Get-Mailbox |FL name, RecipientLimits
MaxRecipientEnvelopeLimit
Specifies the total recipient limit, valid at the organization-wide or connector level.
To check current quota status;
Get-TransportConfig | FT name,MaxRecipientEnvelopeLimit
MaxRecipientsPerMessage
Specifies the maximum number of recipients that can be in a message for the Receive Connector.
To check current quota status;
Get-ReceiveConnector | ft name,MaxRecipientsPerMessage
4. Deleted Items & Recoverable Items Quotas
RecoverableItemsQuota
Sets the maximum capacity for the "Recoverable Items" area.
RecoverableItemsWarningQuota
When this area is close to being full, the system gives a warning.
DeletedItemRetention
Specifies the number of days for which deleted items are kept recoverable. The default is 14 days.
To check current quota status;
Get-Mailbox |FT name, RecoverableItemsQuota,RecoverableItemsWarningQuota, DeletedItemRetention
5. Archive Mailbox Quotas
ArchiveQuota
Specifies the maximum size for the archive mailbox.
ArchiveWarningQuota
When the archive mailbox size approaches this limit, the system sends a warning.
To check current quota status;
Get-Mailbox |FT name, ArchiveQuota,ArchiveWarningQuota
6. Message Tracking Settings
MessageTrackingLogMaxAge
Specifies how many days the logs will be stored (e.g. 30 days).
MessageTrackingLogMaxDirectorySize
Specifies the total log folder size limit.
MessageTrackingLogMaxFileSize
Specifies the maximum size of each log file.
To check current quota status;

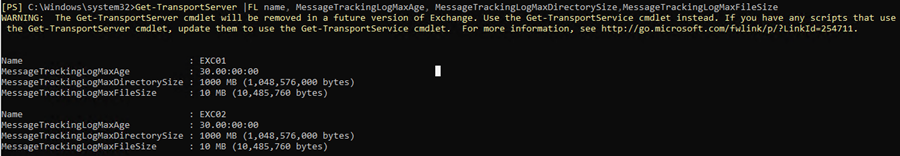

Get-TransportServer |Ft name, MessageTrackingLogMaxAge, MessageTrackingLogMaxDirectorySize,MessageTrackingLogMaxFileSize
7. Protocol Log Settings (Send/Receive)
SendProtocolLogMaxAge
Specifies the maximum number of days for which SMTP transmission logs will be stored in the system.
SendProtocolLogMaxDirectorySize
Specifies the total size limit for the send log folder.
ReceiveProtocolLogMaxAge
Specifies the retention period of SMTP reception logs.
ReceiveProtocolLogMaxDirectorySize
Specifies the total size limit for the receive log folder.
To check current quota status;

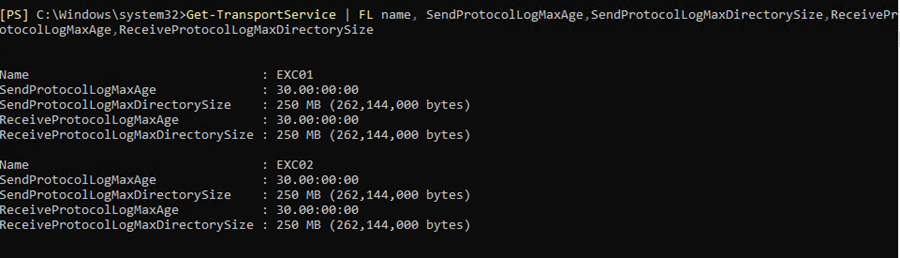

Get-TransportService | FL name, SendProtocolLogMaxAge,SendProtocolLogMaxDirectorySize,ReceiveProtocolLogMaxAge,ReceiveProtocolLogMaxDirectorySize
Correctly configuring quota and limit settings in an Exchange Server infrastructure is crucial not only for managing disk space but also for the system's healthy and uninterrupted operation. The parameters discussed in this article provide administrators with important control mechanisms to balance email traffic and user experience. Setting realistic limits, implementing alert mechanisms, and customizing settings to meet the organization's needs is the best approach.
